Code: MG4197618

Granule dishwasher Metos WD-90GR flex Touch 400V3N

The WD-Touch display guides you through the washing process with an intuitive touch screen. Easy navigation with built-in user manuals.. Front loaded model

List price kr520,338.00 Promotion price kr476,976.00
On order
The WD-Touch display guides you through the washing process with an intuitive touch screen. Easy navigation with built-in user manuals.. Front loaded model
- patented washing system quarantees a good washing and drying result thanks to the high speed centrifuging
- hygiene warranty easies up the HACCP: the electronics of the machine controls the washing process
- amasingly low running costs: the machine uses max. 5 litres fresh water in the final rinse. This also leads to lower consumption of energy, rinse aid and detergent.
- square washing rack for versatile items
- more capacity in a little space: 8 pcs. of GN1/2 or 4 pcs. of GN1/1 containers cleaned with one programme
- 160 pcs. of GN1/2 or 80 pcs. of GN1/1 containers cleaned in one hour
- working on the door of the machine prevents the food waste and granules from falling onto the floor, thus minimazing risks for slipping and work injuries
- flexible Rack: GN containers and other cooking utensils easily placed in the Rack without troublesome extra equipment
- effective condensing, only 1,5 litres water consumpion/cycle
- six washing programmes: three with granules (the granule washing time is adjustable) and three without. The washing programmes can be chosen with or without the centrifuging.
- the two pump system quarantees a reliable separation of the granules
- easy to install: all connections are above the machine
- easy to clean: The machine is equipped with a hinged door that opens fully to provide easy access to the back of the machine
- tank volume 100 l
- sound level 69 dB

Standard equipment:
- 1 square washing rack
- 3 side holders
- 3 support walls
- 1 flexible insert with side holder
- 5 l of granule
- cleaning scraper
- granule gathering strainer

Extra equipment:
- extra racks and holders
- trolleys
- prewash and unloading tables
- booster pump
- granules
General
Description Granule dishwasher Metos WD-90GR flex Touch 400V3N
Dimensions and Capacity
Product capacity 45pcs x GN1/1 /hour
Item width mm 878
Item depth mm 955
Item height mm 1882
Package volume 1.86 m3
Package dimensions (LxWxH) 106x90x195 cm
Net weight 330 kg
Package weight 340 kg
Technical information
Connection power kW 11.3
Fuse Size A 20
Connection voltage V 400
Number of phases 3NPE
Frequency Hz 50
Protection rating (IP) 55
Electrical conn. height mm 1830
Cold water diam. 1/2"
Cold water min pressure kPa 100
Cold water max pressure kPa 600
Cold water conn. height mm 1882
Hot water diam. 1/2"
Hot water flow l/min 15
Hot water min pressure kPa 250
Hot water max pressure kPa 600
Hot water conn. height mm 1882
Drain diameter 50
Drain flow l/s 3
Drain conn. inlet Bottom
Drain conn. height mm 100
Floor drain needed Yes
Sound level dB 69
Ventilation machine m³/h 600
Boiler power kW 9
Features
Operation type electronical
Cleaning washing program
Features 4x1/1GN
Programmability ready programs
Amount of programs 6
Insulation insulated
Drain pump No
Model WD-90 GR
Energy and Consumption
Water consumption water consumption (litres/programme) 1.5
Power type electric

Services and accessories

Wall rack for accessories Metos WD 100GR
On order

Wall rack for accessories Metos WD 100GR

List price kr2,568.00 Promotion price kr2,354.00

Support wall Metos WD-90GR FLEX and WD-100GR cassette
On order

Support wall Metos WD-90GR FLEX and WD-100GR cassette

List price kr1,940.00 Promotion price kr1,777.00

Potholder for pot with handled Metos WD-80/90GR HC
On order

Potholder for pot with handled Metos WD-80/90GR HC

List price kr2,183.00 Promotion price kr2,002.00

Utensil holder Metos WD-90GR Flex
On order

Utensil holder Metos WD-90GR Flex

List price kr7,315.00 Promotion price kr6,706.00

Cutlery and utensils holder for Metos WD 80/90GR
On order

Cutlery and utensils holder for Metos WD 80/90GR

List price kr2,423.00 Promotion price kr2,221.00

Center pan support for Metos WD 80/90GR HC
On order

Center pan support for Metos WD 80/90GR HC

List price kr3,725.00 Promotion price kr3,416.00

Granules Biolat 5KG for Metos 90DUO/GR90/GR100 machines
In stock

Granules Biolat 5KG for Metos 90DUO/GR90/GR100 machines

List price kr2,810.00 Promotion price kr2,576.00

Service trolley Metos SET-75 WD
In stock

Service trolley Metos SET-75 WD

List price kr13,983.00

Granules Metos 10 kg WD 90DUO/GR90/GR100
In stock

Granules Metos 10 kg WD 90DUO/GR90/GR100

List price kr16,618.00

Dockable Loading Trolley Out feed L-R for Metos GR-90
On order

Dockable Loading Trolley Out feed L-R for Metos GR-90

List price kr73,455.00 Promotion price kr67,335.00

Dockable Loading Trolley In feed L-R for Metos GR-90
On order

Dockable Loading Trolley In feed L-R for Metos GR-90

List price kr73,455.00 Promotion price kr67,335.00

Dockable Loading Trolley Out feed R-L for Metos GR-90
On order

Dockable Loading Trolley Out feed R-L for Metos GR-90

List price kr73,455.00 Promotion price kr67,335.00

Dockable Loading Trolley In feed R-L for Metos GR-90
On order

Dockable Loading Trolley In feed R-L for Metos GR-90

List price kr73,455.00 Promotion price kr67,335.00

Wall rack for lid holder, Metos WD 100GR
On order

Wall rack for lid holder, Metos WD 100GR

List price kr2,548.00 Promotion price kr2,336.00

Wall rack for runners, Metos WD 100GR
On order

Wall rack for runners, Metos WD 100GR

List price kr4,303.00 Promotion price kr3,943.00

Holder for 2/1 containers, Metos WD 90GR HC
On order

Holder for 2/1 containers, Metos WD 90GR HC

List price kr9,120.00 Promotion price kr8,359.00

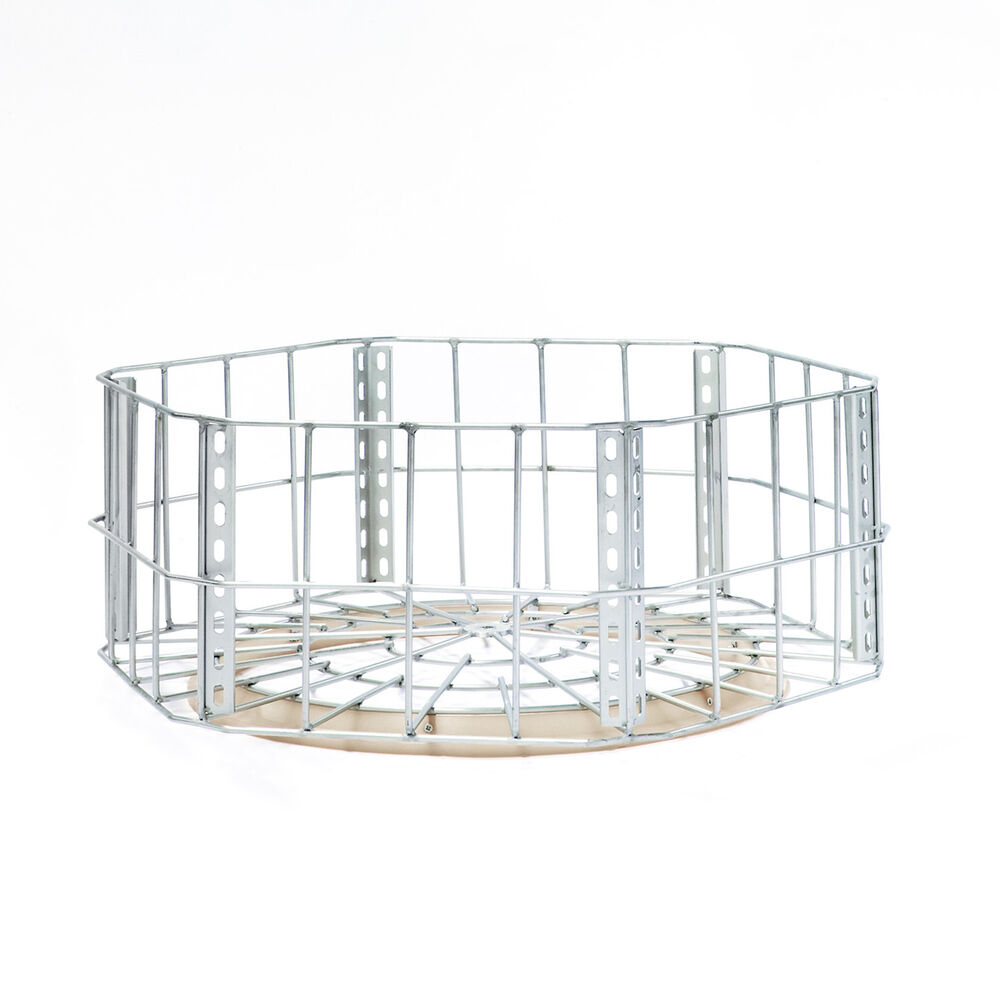

Hexagonal washing rack Metos WD-90GR HC
